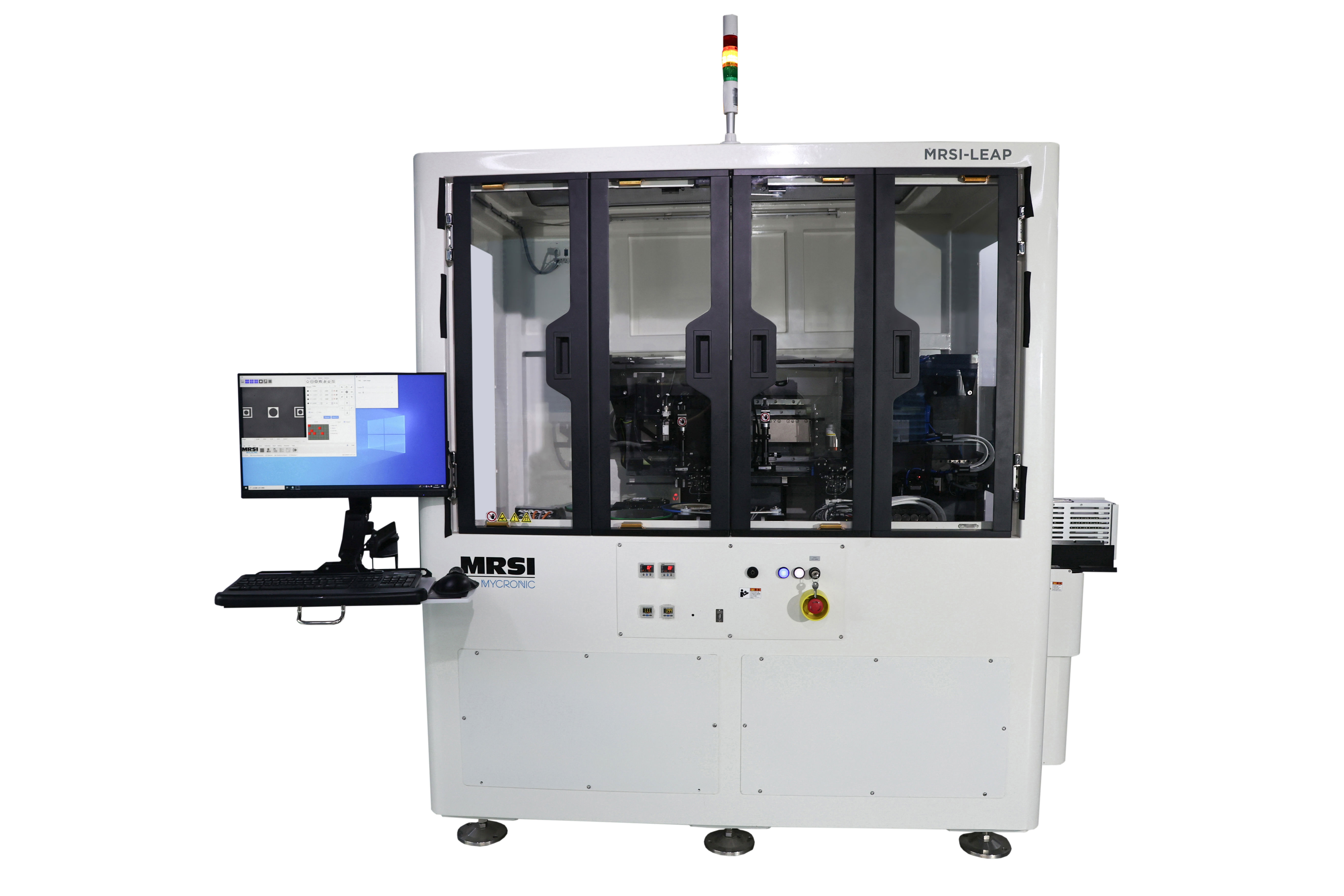

MRSI-LEAP High-Speed Die Bonder

MRSI-LEAP High-Speed Die Bonders

  • Very high throughput
  • High accuracy
  • Supports multiple epoxy bonding processes including stamping, dispensing, UV curing, and flip chip assembly

Applications & Features

  • Flip-chip bonding, UV epoxy dispensing, in-situ UV curing, wafer-level packaging, and other processes are available
  • Ultra-high placement accuracy achieved via intelligent motion control and high resolution vision alignment
  • Unmatched Throughput: Automated material handling and smart multi-tool switching system
  • Supports multiple epoxy bonding processes including stamping, dispensing, UV curing, and flip-chip assembly
  • Proprietary Multi-die Eutectic Bonding: Solves double reflow issues in multi-die heating processes for reliable bonding
  • Broad application compatibility: Suitable for AI optical modules, silicon photonics, LiDAR systems, and optical sensing applications

Value to our Customers

  • Industry-leading throughput and ultra-high accuracy in high-volume manufacturing, with a pick-and-place process capable of achieving over 1,000 units per hour (UPH)
  • Easy to use icon-based interface running on a Windows™ platform for ease of programming, and low-cost machine maintenance
  • Industry-leading local technical support teams and application expertise
  • 40+ years of experience in the industry with reliable 24/7 field operation

Configuration Highlights

  • Advanced machine vision and tool design
  • Modular design and field upgradeable
  • Supports two 8-inch wafers and two 6-inch wafers
  • Built-in conveyor and magazine design for high efficiency and throughput
  • Automated dispensing and UV cure options available



Images

Brochure

MRSI-LEAP High Speed Die Bonder

MRSI-LEAP

For detailed Data Sheets please contact Sales.
