High Power Laser Dides

High power laser diodes (HPLDs) cover the broadest range of applications because of many key attributes. HPLDs can offer a wavelength range unmatched by any other laser type ranging from 400nm to 2000nm in optical output range of 1W to 300+W. Furthermore, HPLDs have the highest power conversion efficiency, converting up to 65% of electrical power into laser output power.

Die Attach

  • Eutectic
  • 1.5μm placement accuracy
  • Complex multi-die HPLD
  • High power pump lasers:
  • Epi-up
  • Epi-down
  • Single emitter Chip-on-Submount (CoS)
  • Bar on submount
  • C-mount heat-sink
  • Internal chip flipping


Gold-box Packaging

  • Thermal and UV Epoxy
  • Eutectic
  • Cooled or uncooled
  • 1.5μm placement accuracy

High Power Laser Diodes

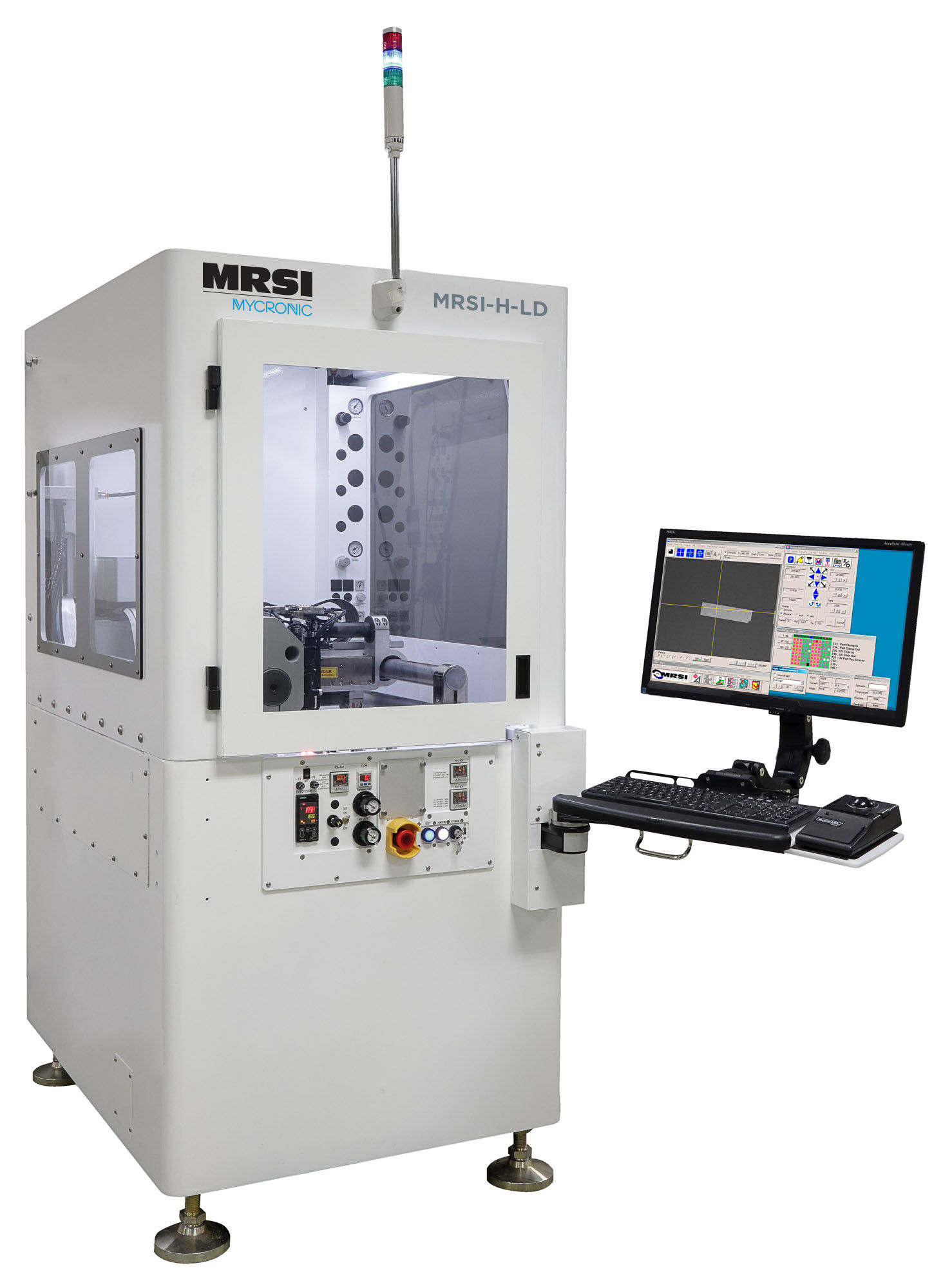

MRSI-H-LD 1.5μm

MRSI-H-LD 1.5μm
