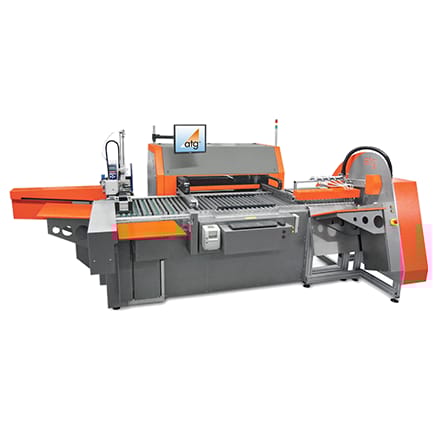

The automated A7a Flying Probe Test System provides highest flexibility. It is designed for the fully automated test of production panels and final products while at the same time offering all other benefits of the A7 Pro series.
Most successful automation for high volume or high mix/low volume
Set up of multiple part numbers without panel count and size restriction by 2D code recognition.
Fully automated test system with loader and separation of good and bad boards
8 test heads
Linear motor drives for X- and Z-axis
Stepper motor technology for phi-axis
Max. test area
610 mm x 510 mm (24" x 20")
Max. product size
635 mm x 535 mm (25" x 21")
Throughput up to
52 PCB per hour (average 4.000 test points per board)
Good and bad board identification by 2D Barcode label, automatic tension bars
Our service offering for our advanced Barebord testing is a key part of our commitment to our customers. Our objectives are to maximize throughput, performance and yield for the lifetime of every system installed.
