A9 plus

A9 plus

A9 plus

  • Productivity 8 test heads with fastest linear drive technology
  • Stability High resolution cameras 3 µm / Px.
  • Flexibility Supports supstrate like PCB (SLP) applications

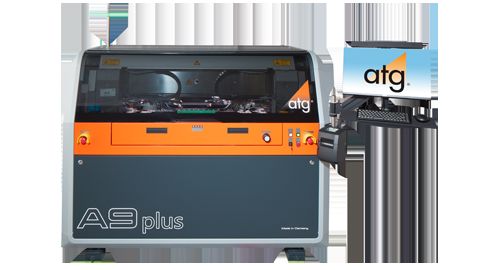

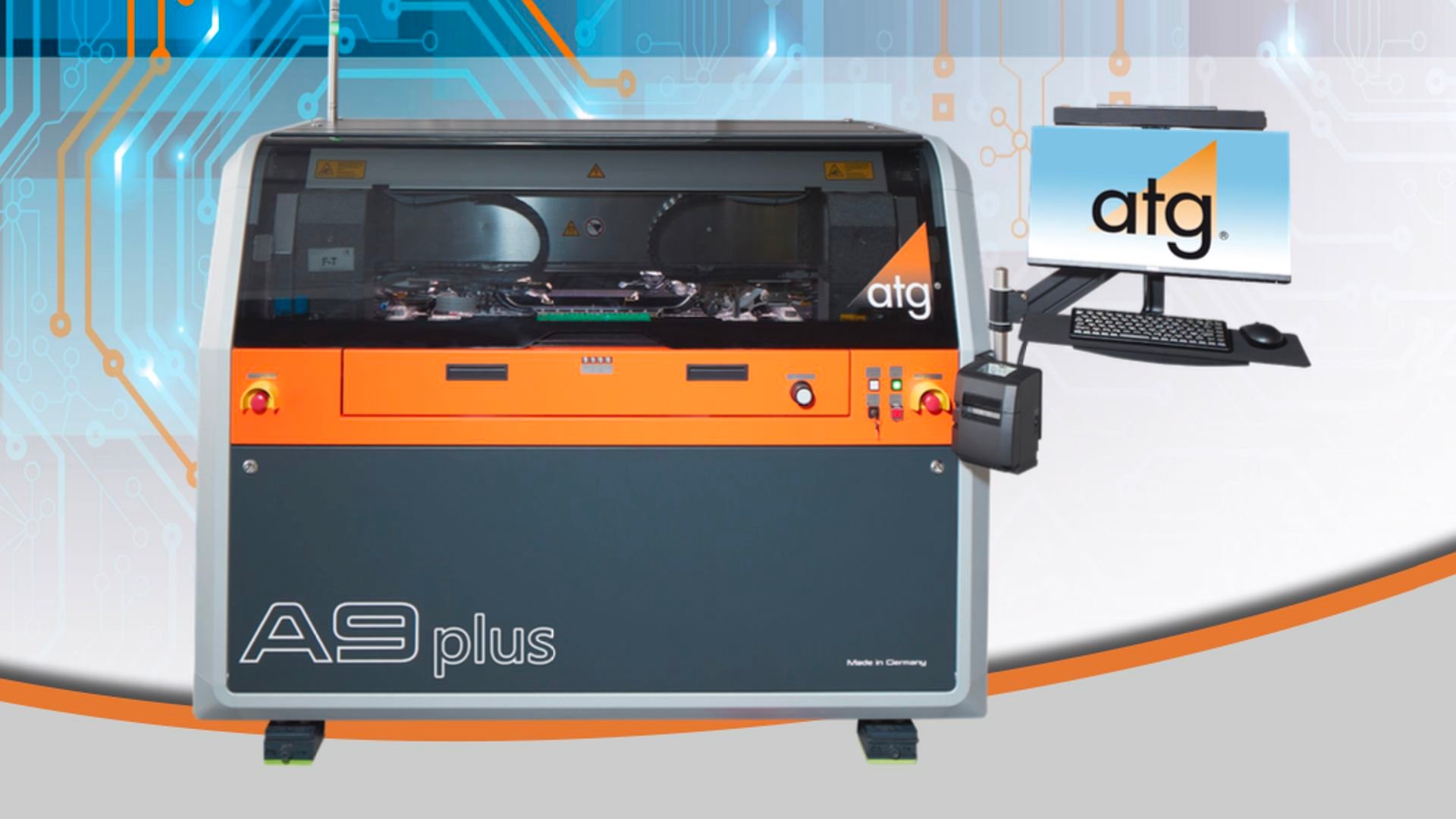

The A9 Plus is utilizing the same technology as the A9 and is in addition equipped with a temperature control unit and 4 high-resolution cameras. The system provides the accuracy to test reliably pad sizes down to 25 microns and is optimized for the test of Substrate-like-PCBs and similar products.

Key benefits

  • A9 technology with additional temperature control and high resolution cameras for maximum accuracy

Camera resolution of 3 micron per pixel compared to 6 micron of the standard A9.


8 test heads


Linear motor drives for X-, phi- and Z-axis


Granit base


High-resolution cameras with 3 microns per pixel


Max. test area

610 mm x 510 mm (24" x 20")

Max. product size

640 mm x 535 mm (25.2" x 21.0")

Test speed

up to 220 TP/sec (depending on test method)

4 high-resolution color XGA-cameras


Smallest pad/pitch A9

25 µm*(1 mil) / 50 µm (2 mil) (* glass calibration)

Soft touch contacting


Micro short detection (MSD®)


Pneumatic clamping / tension frame




Embedded component test, Test floor integration with Universal Grid systems, High-Speed Kelvin 4 wire test up to 300 mA*, LaTest® (Latent defect)


A9 plus

A9 plus



Service for Bareboard testing

Superior service for superior performance

Our service offering for our advanced Bareboard testing is a key part of our commitment to our customers. Our objectives are to maximize throughput, performance and yield for the lifetime of every Mycronic system installed.
