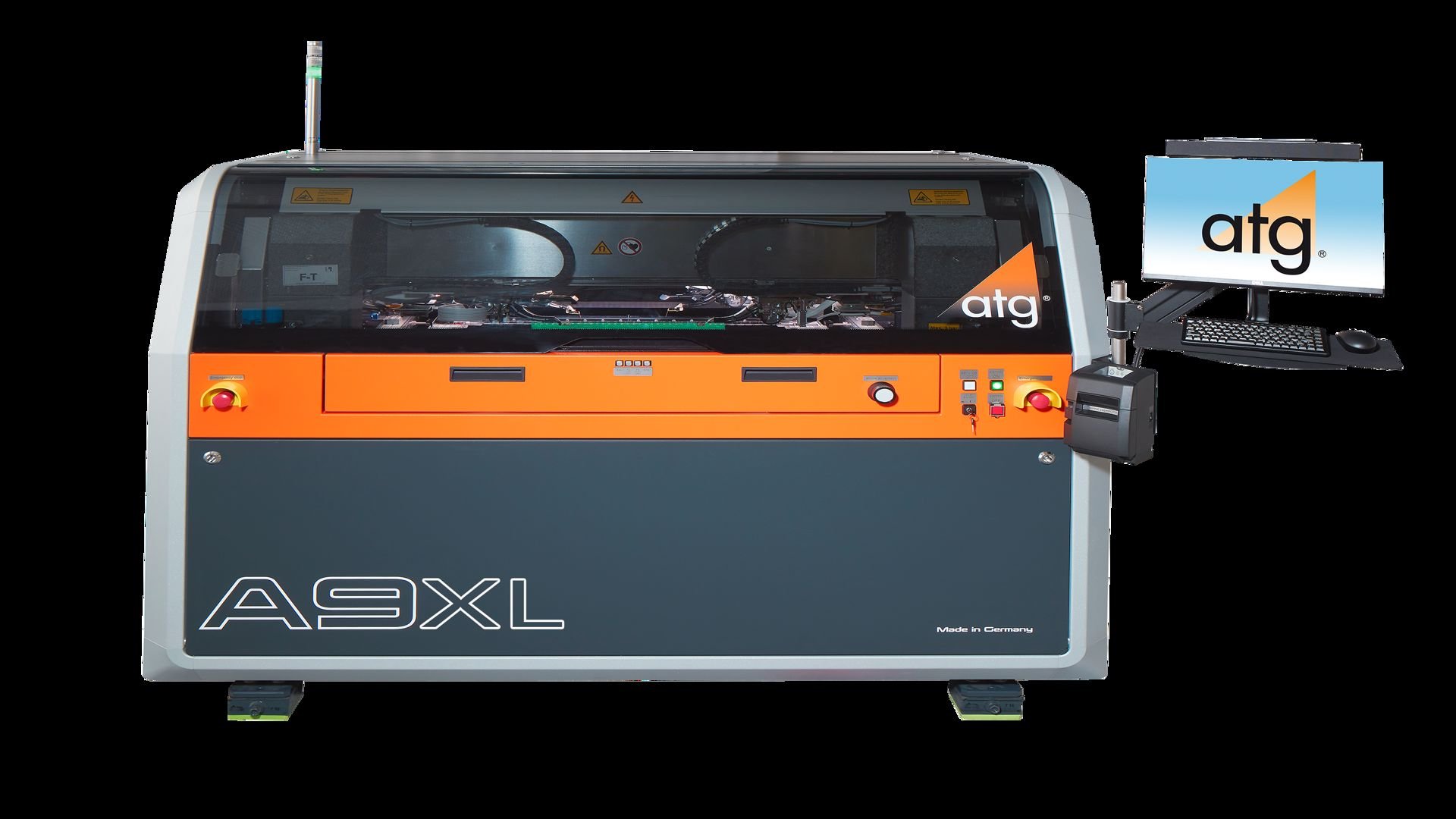

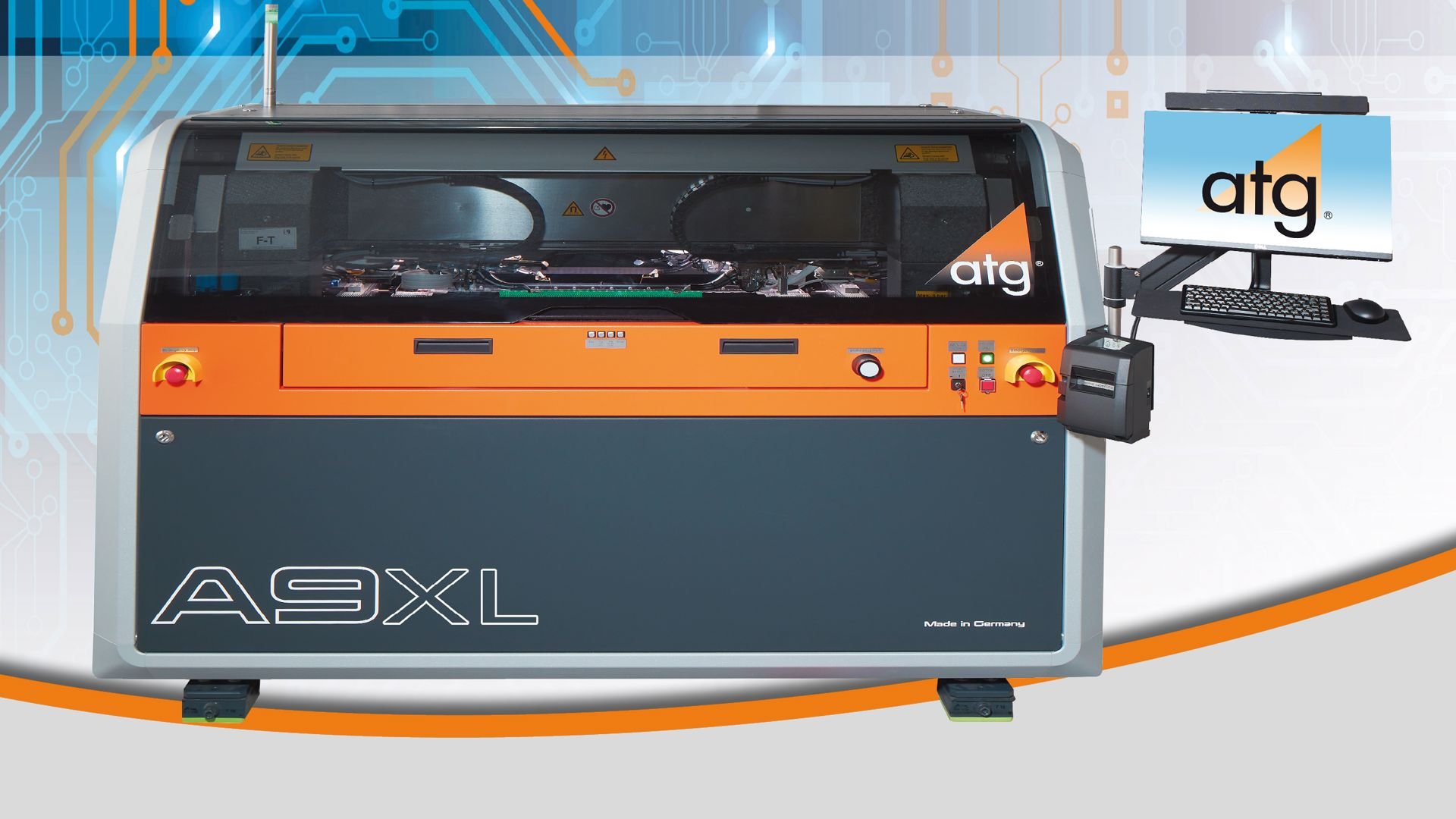

A9XL
- Productivity 8 test heads with fastest linear drive technology
- Stability Shuttle system for rigid products up to 48” x 26”
- Flexibility Advanced back drill and active diode test capability
Description
The A9XL is the latest model of our A9 product family based on our A9 test head technology with a new powerful drive technology and granite base to ensure high accuracy.
The universal shuttle system including tension option supports super large product sizes up to 48” x 26” with an active test of 47” x 24”.
The A9XL has an outstanding test speed of 25 contacts per second per test head and improved motion control with highest accuracy for advanced test functionalities like BackDrill test and active component testing.
Specification
|
8 test heads |
|
|
Linear motor drives for X-, phi- and Z-axis |
|
|
Granit base |
|
|
Max. test area |
1200 mm x 610 mm (47.2" x 24") |
|
Max. product size |
1220 mm x 660 mm (48" x 26") |
|
Test speed |
up to 220 TP/sec (depending on test method) |
|
4 high-resolution color XGA-cameras |
|
|
Smallest pad/pitch A9L |
50 µm(2 mil) / 100 µm (4 mil) |
|
Soft touch contacting |
|
|
Micro short detection (MSD®) |
|
|
Pneumatic clamping / tension frame |
|
|
Options |
Embedded component test, Test floor integration with Universal Grid systems, High Speed Kelvin 4 wire test up to 300 mA*, LaTest® (Latent defect) and BackDrill testing |
