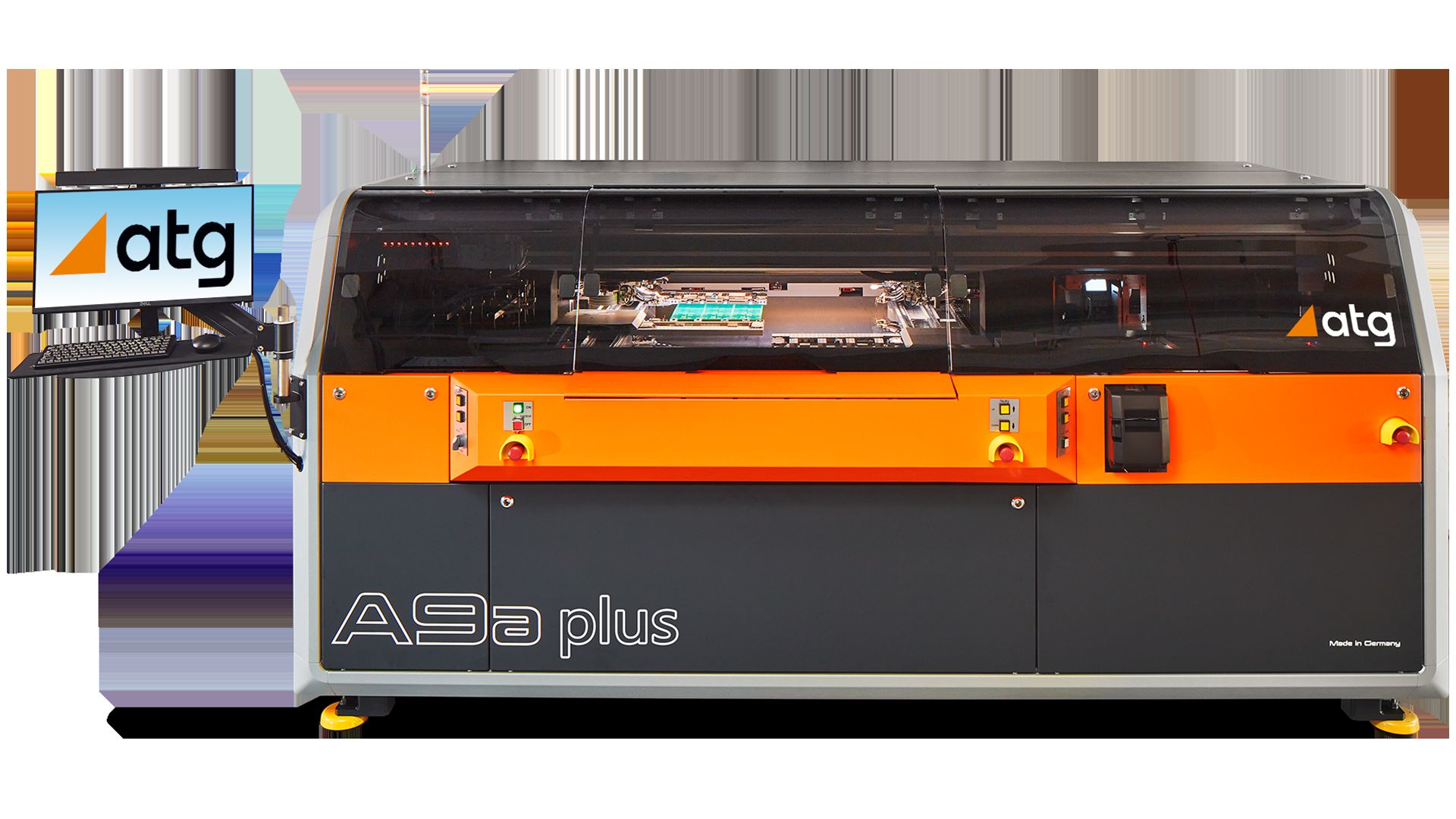

A9a plus

A9a plus

A9a plus

  • Productivity Fully automatic tester with highest throughput
  • Stability High resolution cameras 3µm / Px
  • Flexibility Supports automatic handling of SLP and sophisticated mSAP products

Description

The A9a plus is utilizing the same technology as the A9a and is in addition equipped with a temperature control unit and 4 high-resolution cameras. The system provides the accuracy to test reliably pad sizes down to 30 microns and is optimized for the test of Substrate-like-PCBs and similar products.

Key benefits

  • A9a technology with additional temperature control and high resolution cameras for maximum accuracy

Camera resolution of 3 micron per pixel compared to 6 micron of the standard A9.

Specification

8 test heads



High-resolution cameras with 3 microns per pixel



Max. test area auto mode

480 mm x 420 mm (18.9" x 16.5")

Max. test area manual mode

610 mm x 510 mm (24"x 20")

Max. product size manual mode

610 mm x 535 mm (24" x 21")

Max. product size auto mode

480 mm x 420 mm (18.9" x 16.5")

Throughput up to 100 PCB per hour (average 4.000 test points per board)


Options Barcode label, Pen Marking Unit for each individual image, automatic tension bar, automatic sucker unit
