  • Productivity Fully automatic tester with highest throughput
  • Stability Dual Shuttle system with zero seconds product exchange time
  • Flexibility Supports automatic slip-sheet handling

Description

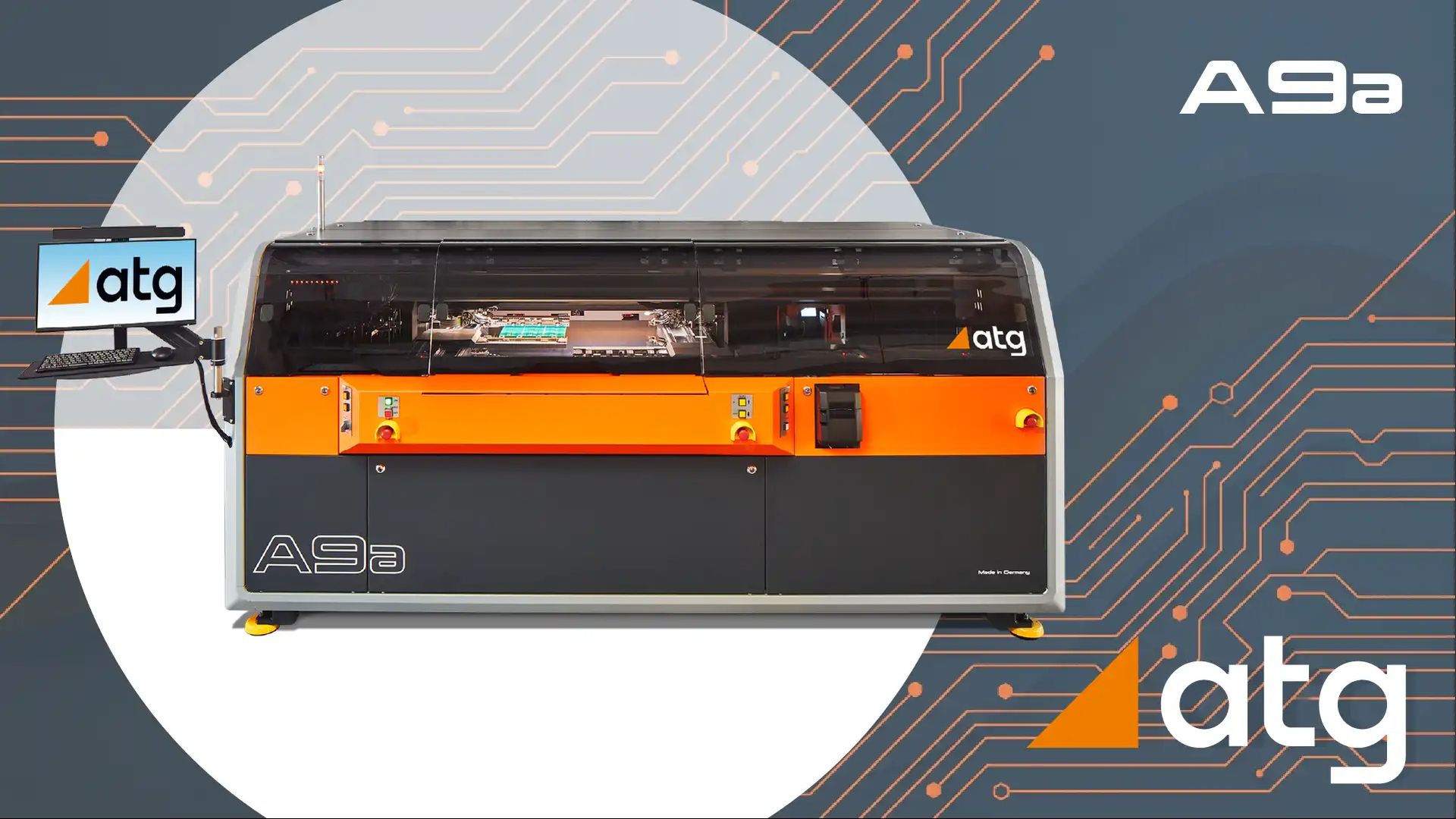

The fully automated A9a, 8-head, double-sided, high-speed, high-accuracy flying probe test system features state-of-the-art technology.
The electrical test system enables to test of the latest ultra-fine designs while helping to reach industry-leading automation goals.

A9a can test pad sizes down to 35 microns and is capable of testing products up to a size of 21” x 24”. The A9a eliminates limitations due to test point density or fine-pitch contacts and features embedded component test, 4-wire Kelvin measurement capability with an accuracy of +/- 0,025 mΩ, HPOT, and latent testing.

Test speeds of up to 230 measurements/second in combination with a “lights-out” automated handling solution enable the test of larger production runs. A key feature of the A9a is a dual shuttle system, which reduces the product exchange time to zero seconds in automation mode.

Key benefits

  • Pick and Place automation for products in final a product stage


Capability to test production panel size up to 24" x 21" in manual mode
Best price / performance ratio
Latest generation in advanced technology
8 ultra light carbon fiber test heads
Fully automatic “Lights-out” operation
High performance linear motion
Granit base for high accuracy and repeatability

Specification

Fully automated test system with loader and separation of good and bad boards



8 test heads



Linear motor drives for X-; phi- and Z-axis



Max. test area auto mode

480 mm x 420 mm (18.9" x 16.5")

Max. test area manual mode

610 mm x 510 mm (24"x 20")

Max. product size manual mode

610 mm x 535 mm (24" x 21")

Max. product size auto mode

480 mm x 420 mm (18.9" 16.5")


Throughput up to

100 PCB per hour (average 4.000 test points per board)
Options Barcode label, Pen Marking Unit for each individual image, automatic tension bar, automatic sucker unit
