LM1000

LM1000

  • Productivity High-accuracy step-tester for universal and dedicated fixture designs
  • Stability 2 cameras for top/bottom offset compensation
  • Flexibility Advanced 4-wire, µShort and voltage drop measurement methods

Description

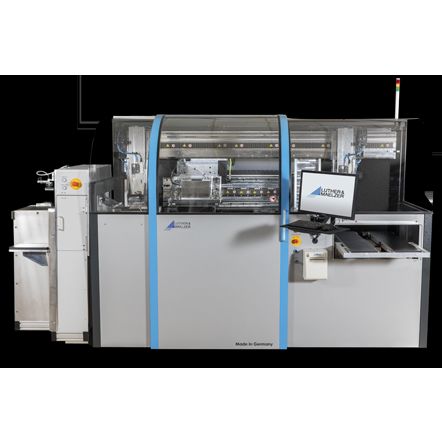

The LM1000 is a highly precise compact step tester for the electrical test of HDI bare boards in mass production.

The solid granite frame provides the highest accuracy. Two high-resolution cameras (top and bottom) scan the PCB and enable the automatic micro-adjustment of the fixtures.

The dual shuttle and a dual vacuum grabber – driven by fast linear motors – provide high throughput multi-tasking product handling. The machine runs either with universal fixtures up to 6.4″ x 9.6″ test area or with a dedicated fixture.

This gives the customer the possibility to choose the best price-performance technology for the specific application without being limited by the equipment.

Key benefits

  • Fully automated step-tester for universal and dedicated fixtures
  • Test area of 9.6” x 6.4” (244 mm x 164 mm), max product size 400 mm x 300 mm
Double Shuttle for highest throughput
Granite base to ensure highest accuracy
Double-sided high-resolution camera system
Automatic micro-adjustment
High speed Kelvin 4-wire test
Cleaning Station
Extended inspection methods
Repair s/w with barcode support

Brochures

Specification

Max. # Test Points

49,152 per side (OD 35 mil)

Continuity test

30 Ω - 10 KΩ

Short test

100 KΩ - 100 MΩ

Test area

244 x 163 mm (9.6" x 6.4")

Isolate Voltage

35 V – 250 V DC

4-wire Kelvin

Range 0 mΩ - 50 KΩ  with a tolerance

(± 3 mΩ), up to 1.500 measurement/sec

(depending on accuracy and board size)
Extended inspection methods Leakage, Spare, µShort, 4W open, 4W resistor, measurement of resistor divider ratio
